$126.99

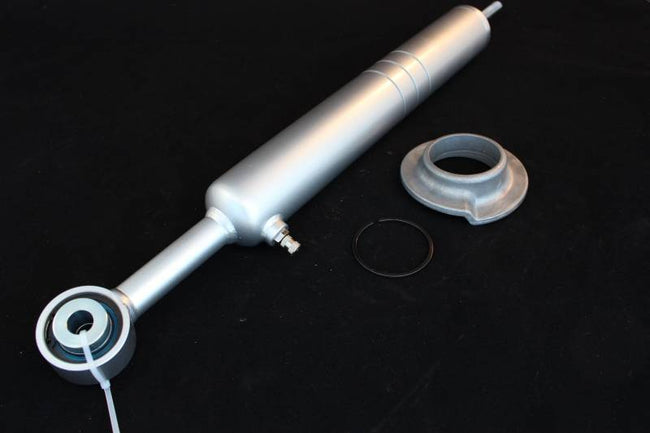

The 2.0 Mono-Tube Front Adjustable Height Leveling Struts are available in Snap Ring Groove models, giving you adjustability and lift. The large bore piston design gives increased piston control that...

The 2.0 Mono-Tube Front Adjustable Height Leveling Struts are available in Snap Ring Groove models, giving you adjustability and lift.

The large bore piston design gives increased piston control that instantly reacts to the change in road conditions.

All 2.0 High Performance Mono-Tubes are hand built and can be custom valved to fit individual needs at no additional charge during the time of placing the order.

Uses factory Coil and factory Upper Perch.

For other options such as Full Coil Overs and Full Coil Overs with Remote Reservoirs for lift kits call 800-8-SHOCKS.

  • Available with Adjustable Dampening Remote Kit
  • Available with Rod Ends
  • Custom Lengths available
  • Custom Coating available

Chevy_Tire / Wheel Size Chart

Application Lift Mac Tire
Recommended
Max Tire
Possible
Max Wheel
Width
Minimum
Backspace
Maximum
Backspace
00’-04’ 1500/2500HD 2wd / 4wd 6” 35x12.50 37x12.50 8-9.5 3.75 4.5
02’-04’ 2500 Avalanche 4wd 6” 35x12.50 35x12.50 8-9 3.75 4.5
99’-04’ 1500 / Tahoe / Yukon / Sub. 4wd 6” 35x12.50 35x12.50 8-9 3.75 4.5
99’-04’ 1500 Silverado 2wd 7” 35x12.50 35x12.50 8 3.75 4.5
99’-04’ 1500 Silverado 2wd 6” 33x12.50 33x12.50 8 3.75 4.5
99’-04’ 1500 Silverado 2wd 3” 31x10.50 32x11.50 8 3.75 4.5
88’-98’ 1500 Silverado 2wd 7” 35x12.50 35x12.50 8 3.5 4.5
88’-98’ 1500 Silverado 2wd 6” 33x12.50 33x12.50 8 3.5 4.5
88’-98’ 1500 Silverado 2wd 3” 31x10.50 32x11.50 8 3.5 4.5
82’-03’ S10 / Blazer 2wd 6” 32x11.50 33x10.50 8 3.5 4.25
82’-03’ S10 / Blazer 2wd 3” 30x9.50 30x10.50 8 3.5 4.25

Ford_Tire / Wheel Size Chart

Application Lift Max Tire
Recommended
Max Tire
Possible
Max Wheel
Width
Minimum
Backspace

Maximum
Backspace

04’ F150 4wd 7” 35x12.50 37x12.50 8-9 3.75 4.5
97’-03’ F150 / Expedition 4wd 6” 35x12.50 35x12.50 8-9 3.5 4.5
99’-04’ F250 / F350 4wd - ii 6” 39x14.50 40x14.50 9-12 3.75 4.5
99’-04’ F250 / F350 / Excursion 4wd 6” 37x12.50 37x13.50 10 3.75 4.5
99’-04’ F250 / F350 / Excursion 4wd 4” 35x12.50 35x13.50 8-10 3.75 4.5
99’-04’ F250 / F350 / Excursion 4wd 3” 33x12.50 35x12.50 - iii 7-10 3.75 4.5
80’-96’ F150 4wd 4” 33x12.50 33x12.50 8-9 3.25 4.25
80’-96’ F150 4wd 6” 35x12.50 35x12.50 8-9 3.25 4.25
04’ F150 2wd 7” 35x12.50 37x12.50 8 3.75 4.5
04’ F150 2wd / 4wd 3” 33x12.50 35x12.50 8 3.5 4.5
97’-03’ F150 2wd 6” 33x12.50 35x12.50 8 3.5 4.5
97’-03’ F150 2wd 3” 32x11.50 33x12.50 8 3.5 4.5
97’-03’ F150 2wd 2” 31x10.50 32x12.50 8 3.5 4.5
01’-04’ Ranger 2wd 6” 33x10.50 33x12.50 8 3.5 4.5
01’-04’ Ranger 2wd 3” 30x9.50 31x10.50 8 3.5 4.5
01’-04’ Ranger 2wd 2” 30x9.50 31x10.50 8 3.5 4.5
98’-00’ Ranger 2wd 6” 33x11.50 33x12.50 8 3.5 4.5
98’-00’ Ranger 2wd 3” 30x9.50 31x10.50 8 3.5 4.5
98’-00’ Ranger 2wd 2” 30x9.50 31x10.50 8 3.5 4.5
89’-97’ Ranger 2wd 5” 31x10.50 32x11.50 7-8 3.25 4.25
00’-04’ F250 / F350 / Excursion 2wd 6” 35x12.50 35x12.50 8-10 3.5 4.5
86’-99’ F250 2wd 6” 35x12.50 35x12.50 8-10 3.5 4.5

Dodge_Tire / Wheel Size Chart

Application Lift Max Tire
Recommended
Max Tire
Possible
Max Wheel
Width
Minimum
Backspace
Maximum
Backspace
94’-01’ 1500 4wd 3” 33x12.50 35x12.50 8-10 3.5 4.5
94‘-02’ 2500 4wd 2” 33x12.50 35x12.50 9-10 3.5 4.5
02’-04’ 1500 2wd 7-6” 35x12.50 37x12.50 - iv 8-9 3.5 4.25
02’-04’ 1500 2wd 3” 33x12.50 35x12.50 - v 8-9 3.5 4.25
00’-01’ 1500 2wd 6” 35x12.50 35x12.50 8-9 3.25 4.5
00’-01’ 1500 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.5
94’-99’ 1500 2wd 6” 35x12.50 33x12.50 8-9 3.25 4.5
94’-99’ 1500 2wd 3” 32x11.50 35x12.50 8-9 3.25 4.5
00’-03’ Dakota 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.75
97’-99’ Dakota 2wd 3” 32x11.50 33x12.50 8-9 3.25 4.75

Toyota_Tire / Wheel Size Chart

Application Lift Max Tire
Possible
Max Wheel
Width
Minimum
Backspace
Maximum
Backspace
99’-04’ Tundra 2wd / 4wd 3” 33x12.50 8-10 3.25 5
95.5‘-04’ Tacoma 2wd / 4wd TRD 3” 33x12.50 7-9 3.25 5
95.5’-04’ Tacoma 2wd 6” 33x12.50 7-8 3.5 4.5
95.5’-04’ Tacoma 2wd 3” 31x11.50 7-8 3.5 4.5

i - Sizes not recommended by Doetsch Enterprises. Sizes determined by installer and customer feedback
ii - 6” Lift combined with 4” spring hangers
iii - 35” Tires on stock rims with a max width of fewer than 8” and a minimum of 7”
iv - Additional coil spacers are needed to achieve height
